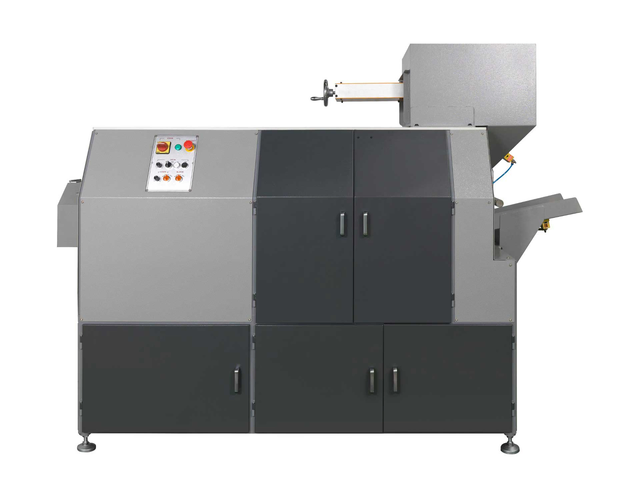

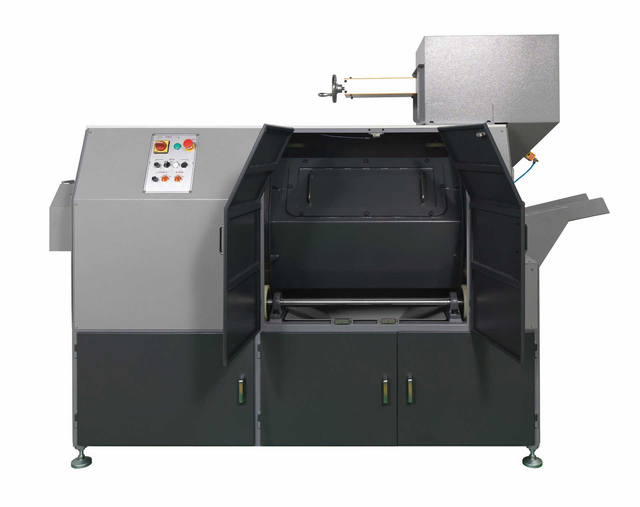

CR-10 Nail Surface Cleaning Machine – High-Speed Nail Cleaning for Superior Surface Quality

The CR-10 Nail Surface Cleaning Machine is an advanced solution for removing dirt, oil, and oxidation from nails before final processing. Designed for high-speed operation, this machine ensures that each nail meets the highest standards of cleanliness, enhancing coating adhesion and overall product quality.

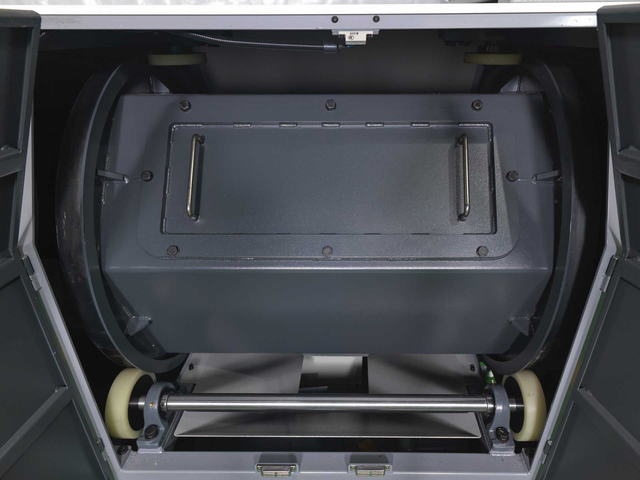

Utilizing a specialized cleaning process, the CR-10 effectively eliminates impurities, preventing defects in downstream processing, such as galvanization, phosphating, and painting. Its high-capacity cleaning system ensures a consistent finish on all nail types, making it an essential addition to any nail manufacturing line.

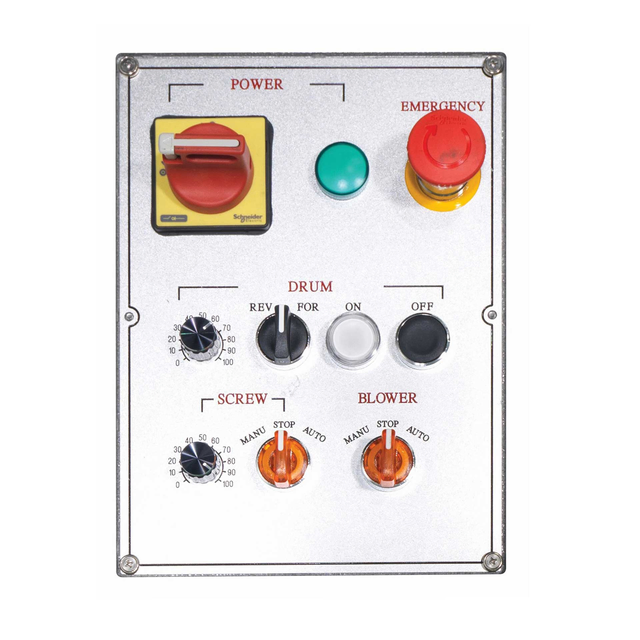

The machines durable design ensures long-term reliability with minimal maintenance, while its user-friendly interface allows for easy operation and adjustment. By incorporating the CR-10 into the production process, manufacturers can improve efficiency, reduce material waste, and enhance the final appearance and durability of their nails.

Feature CR-10
Code 75-2000
Weight 1,700 kg
Nail Diameter Range 2.1 - 3.77 mm (0.083 - 0.148 inch)
Nail Length Range 19 - 100 mm (3/4 - 4 inch)
Speed Up to 7.5 kg/min.
Electric Power 5 kW max, 3P, 370-400 V, 50/60 Hz
Air Consumption 150 liters/min.
Air Supply 6 bar (87 psi), one 1/2 inch hose
