Bowl Feeder RF-36A

Bowl Feeder RF-36A

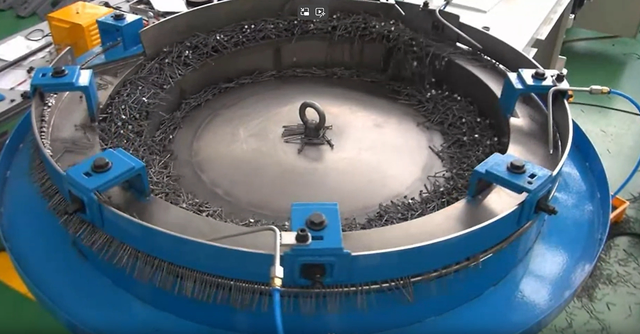

Bowl Feeder RF-36A – Precision Nail Feeding for Industrial Production

The RF-36A Bowl Feeder is a high-performance solution for automated nail feeding in industrial-scale manufacturing. Designed to handle a wide range of nail sizes, this system ensures a continuous and precise supply of nails to nail-making and collating machines, significantly enhancing production efficiency.

Equipped with an advanced vibratory feeding mechanism, the RF-36A delivers smooth and consistent nail alignment, minimizing blockages and misfeeds. Its robust construction and durable design ensure long-term reliability, making it a cost-effective investment for manufacturers seeking to optimize their nail production process.

The RF-36A features an adjustable feed rate to accommodate various production speeds and nail types. Its compatibility with different nail collating systems and easy integration into existing manufacturing lines make it a versatile choice for industrial nail producers.

Feature RF-36A
Code 79-2000
Weight 400 kg
Nail Diameter Range 2.1 - 4.1 mm (0.083 - 0.161 inch)
Nail Length Range 30 - 300 mm (1.2 - 11.8 inch)
Speed Up to 4,000 nails/min.
Electric Power 1.5 kW max, 3P, 210-230 V, 50/60 Hz
Air Consumption 120 liters/min.
Air Supply 6 bar (87 psi), one 1/2 inch hose
Load Capacity 34 kg (75 lbs)
Thread Length Range 900 mm (36 inch)
