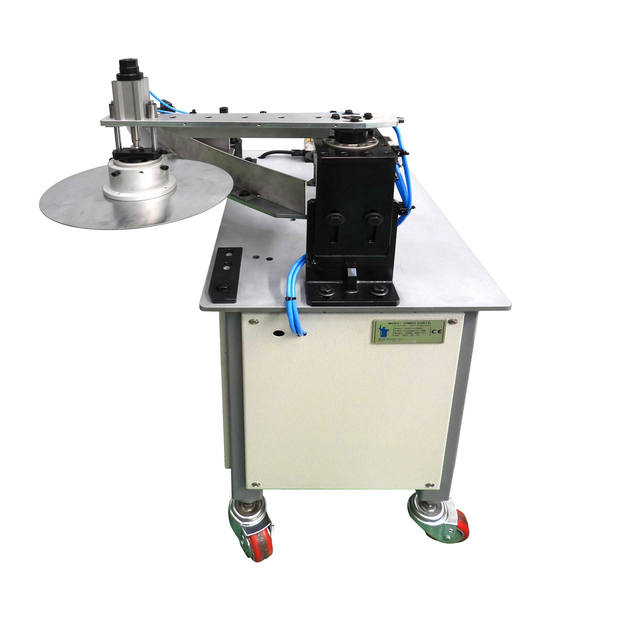

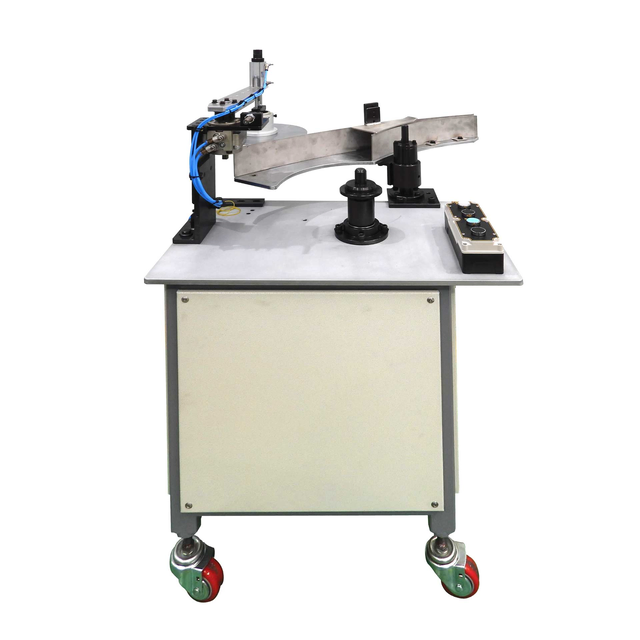

Jumbo Coiler Single – High-Capacity Wire Coiling Solution

The Jumbo Coiler Single is engineered to handle high-capacity wire coiling for industrial applications, particularly in nail production. This advanced system is designed to efficiently wind and store wire, ensuring a continuous and stable supply for nail-making machines.

Featuring a robust and automated design, the Jumbo Coiler Single enhances productivity by minimizing downtime caused by manual wire handling. Its high-speed operation allows for precise wire coiling, reducing material waste and improving production efficiency.

The machine is equipped with an adjustable tension control system, ensuring optimal wire alignment and smooth feeding. Designed for reliability and durability, this coiler seamlessly integrates into production lines, providing manufacturers with an effective solution for managing wire coils.

Feature SINGLE-JC
Code 71_4000
Weight 300
Depth 700
Height 800
Width 790
Nail Diameter Range 1,6 - 3,77 mm / 0.625" - 0.148"
Nail Length Range 19 - 100 mm / ³/₄" - 4"
Electric Power 3 kVA, 3P, 210 - 230 V, 50 - 60 Hz
Bobbin Inner Diameter 32 - 85 mm / 1.26" - 3.346"
Bobbin Outer Diameter Up to 380 mm / 14.961"
Nails Per Coil Up to 3 000 pcs
Weight Kg Lbs 300 kg / 700 lbs
Air Supply 6 bar / 87 psi / (One 1/2" hose)
Space Required 790 x 700 x 800 mm / 2' 7.1" x 2' 3.6" x 2' 7.5"
