Nib Separator – Efficient Nail Scrap Removal System
Nib Separator – Efficient Nail Scrap Removal System
The Nib Separator is an advanced solution for removing nail scraps and defective pieces from production lines, ensuring optimal quality control in industrial nail manufacturing. This system effectively eliminates unwanted fragments, reducing the risk of contamination and improving the efficiency of downstream processes.

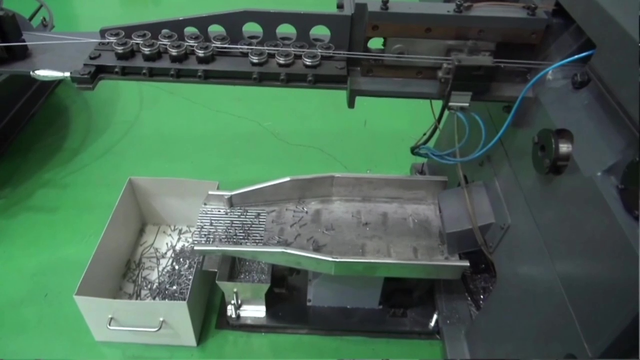

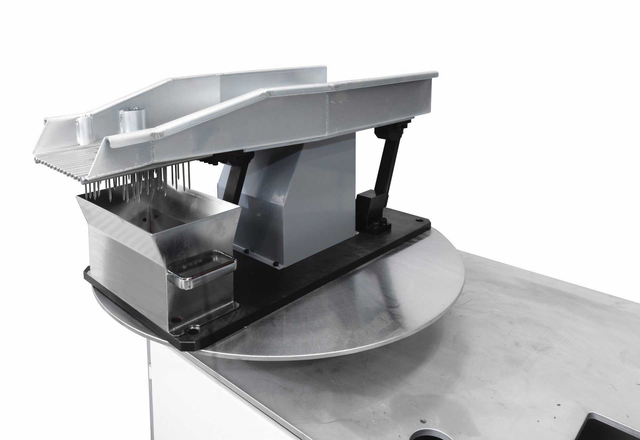

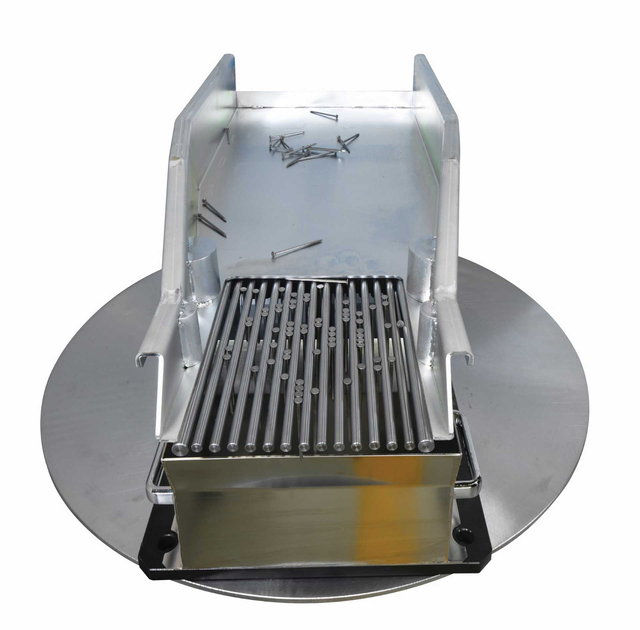

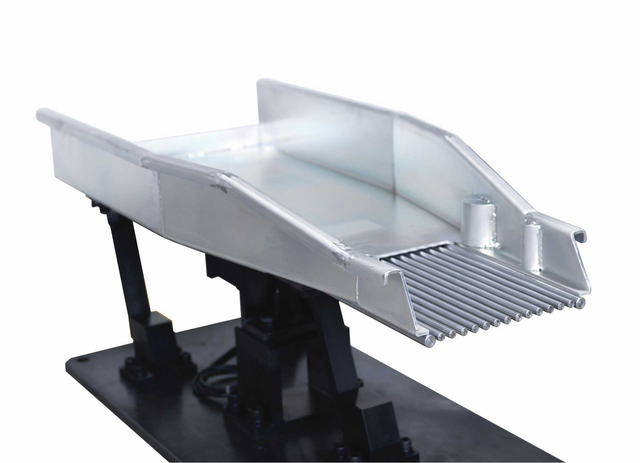

Equipped with a vibratory nib separator and a magnetic conveyor, the system seamlessly sorts and transports nails while isolating waste material. The stainless steel sliding chute ensures smooth handling, while the automated sorting process significantly reduces manual labor and production downtime.
Designed for high-speed operation, the Nib Separator enhances nail production by maintaining a clean and consistent workflow. Its integration into manufacturing lines contributes to greater precision, waste reduction, and improved overall product quality.
| Feature | NIB-LESS |
|---|---|
| Code | 75-1000 |
| Weight | 1 700 |
| Depth | 920 |
| Height | 1 820 |
| Width | 2 600 |
| Nail Diameter Range | 1,6 - 3,77 mm / 0.063" - 0.148" |
| Nail Length Range | 19 - 100 mm / ³/₄" - 4" |
| Speed | 3 000 Nails/min for 3 x 50 mm nails / 7,5 kg/min |
