Plastic Strip Collator SC-83
SC-83 Plastic Strip Collator – High-Performance Nail Collation System
The SC-83 Plastic Strip Collator is a high-speed machine designed to streamline the automated collation of nails onto plastic strips. Engineered for precision and reliability, this system enhances industrial-scale nail production, ensuring optimal nail alignment for seamless use in pneumatic nailers.
With its advanced feeding and welding mechanisms, the SC-83 guarantees firm and consistent attachment of nails to plastic strips, preventing misalignment and ensuring smooth nail feeding during application. Its efficient design enables manufacturers to significantly increase production efficiency while minimizing operational downtime.

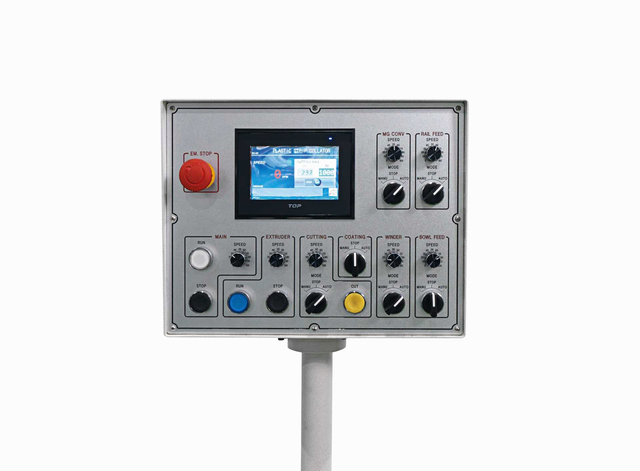

Equipped with an intuitive control panel, the SC-83 allows for quick parameter adjustments, making it adaptable for different nail sizes and strip configurations. This flexibility makes it an essential asset for manufacturers aiming to optimize their collation process.
Built for durability, the SC-83 boasts a sturdy construction that ensures longevity and minimal maintenance requirements. By automating the nail collation process, this machine delivers consistent results, improving overall productivity and cost-efficiency.
| Feature | SC-83 |
|---|---|
| Code | 29-0000 |
| Weight | 4,500 |
| Depth | 2,000 |
| Height | 2,000 |
| Width | 7,000 |
| Essential Equip | 79-2000 |
| Optional Equip | 72-0000 75_3000 |

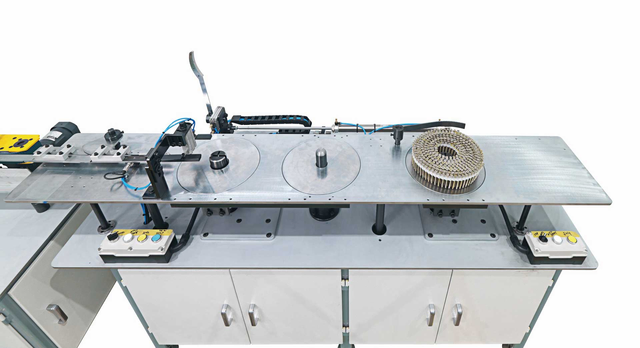

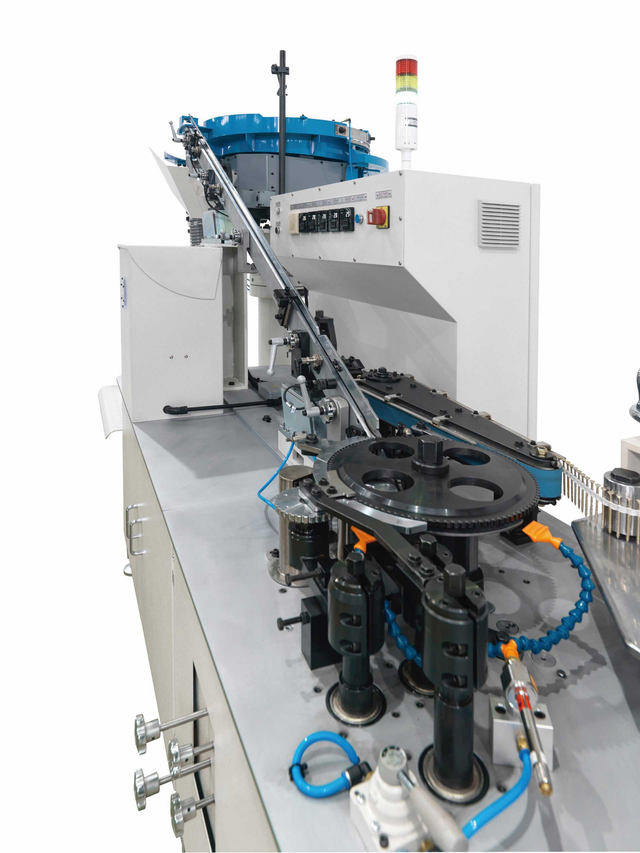

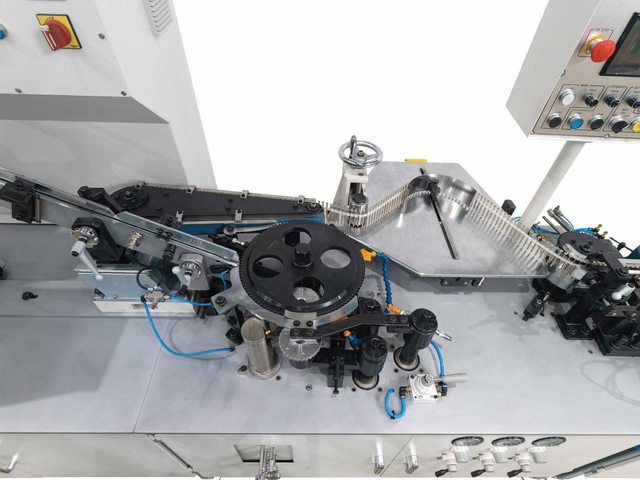

| Features | Straight steep down rail 2 150 mm length, 25° aligned. Strip formation: Injection nozzle & water-cooled crimping gears. Cutter: Count gear with sensor makes screw numbers per strip exact. Magnet transit conveyor. Coiler makes clockwise direction coil. JMR-83: Jumbo and Rewinder make CCW direction jumbo Coil. |
| Nail Diameter Range | 3 - 5 mm / 0.12" – 0.2" |
| Nail Length Range | 35 - 83 mm / 1.38" – 3.27" |
| Speed | 1,500 Screws/min |
| Electric Power | 30 kVA, 3P, 210 - 230 V, 50 - 60 Hz |
| Nail Angle Range | 90° |
| Nails Per Strip | 20 - 50 pcs |
| Air Consumption | 800 l/min. / 48 m³/hod. / 28.3 CFM |
| Air Supply | 6 bar / 87 psi / (One 1/2" hose) |
| Space Required | 7 000 x 2 000 x 2 000 mm / 22' 11.6" x 6' 6.7" x 6' 6.7" |
| Machine Noise | 80 dBA |
