Nail Making Machine B-20

Nail Making Machine B-20

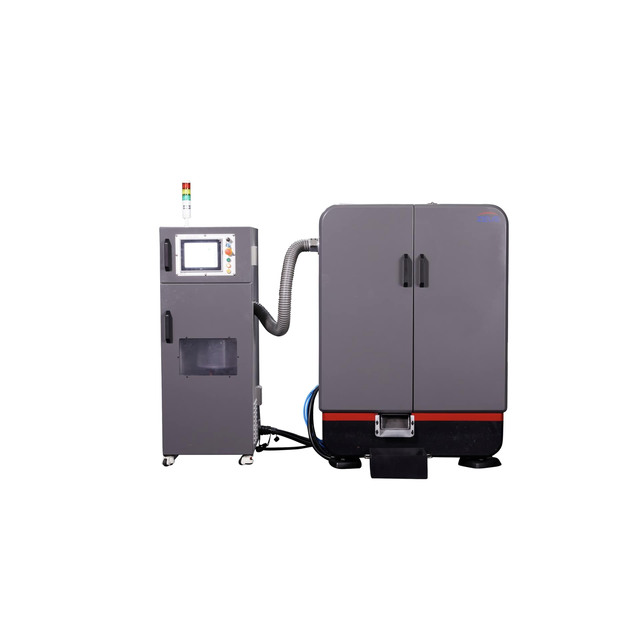

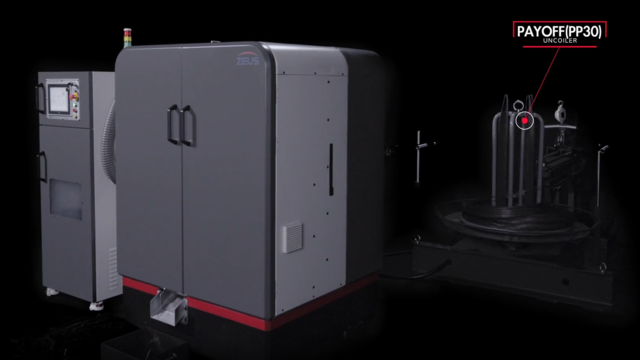

B-20 Nail Making Machine – High-Volume Precision for Industrial Nail Manufacturing

The B-20 Nail Making Machine is designed for manufacturers requiring high-speed and high-volume production of nails. This advanced machine is optimized for efficiency, durability, and precision, ensuring consistent quality across long production runs. With its ability to process a wide range of nail sizes, it is an essential asset for large-scale manufacturing operations.

Featuring a reinforced hammering system, the B-20 ensures uniform nail head formation with every cycle. Its robust mechanical design minimizes vibration and extends the machine’s lifespan, reducing wear and tear over time. The inclusion of a noise-reducing cover provides a quieter working environment, enhancing operational comfort.

Equipped with an intuitive touchscreen control panel, the B-20 simplifies operation and monitoring, allowing for seamless adjustments during production. Its automated feeding and cutting mechanisms optimize speed while maintaining precision, reducing material waste and maximizing efficiency.

The B-20 Nail Making Machine is the perfect choice for manufacturers seeking a high-output, low-maintenance solution that meets industrial production demands. Whether producing smooth, ring, or specialty nails, this machine guarantees reliability and consistency at every stage of the process.

Feature B-20
Code 52-0000
Weight 3,500 kg
Features

High-quality nails can be produced at a high speed with consistency.

The heads of nails are precisely imprinted, making them suitable for engraving.

Low maintenance cost.

Spare parts are readily available at a reasonable price range.

Touchscreen monitor for easy operation.

Utilizes a rotary nail header structure with an inner ring and outer ring.

A complete set of dies and punches is provided free of charge.

The housing is designed to meet safety regulations.

Nail Diameter Range 2.5 - 3.43 mm (0.098 - 0.135 inch)
Nail Length Range 50 - 75 mm (2 - 3 inch)
Speed Up to 1,500 nails/min.
Main Motor 7.5 kW (10 HP)
Electric Power 13kW max, 3P, 370 - 400 V, 50/60 Hz
Air Consumption 200 liters/min.
Air Supply 6 bar (87 psi), one 1/2 inch hose
