Nail Making Machine B-3

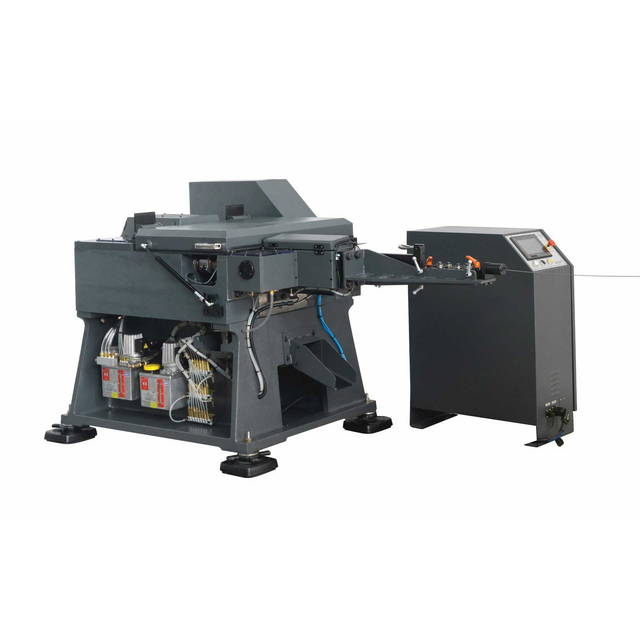

B-3 Nail Making Machine – High-Speed Precision for Industrial Nail Production

The B-3 Nail Making Machine is engineered for high-speed and precise nail manufacturing, making it an excellent choice for industrial-scale production. Designed to deliver exceptional efficiency, this machine produces high-quality nails with remarkable accuracy while maintaining low operational and maintenance costs. Its powerful hammer ensures consistent nail head formation, while the integrated sound insulation cover significantly reduces noise levels, creating a more operator-friendly environment.

Equipped with an advanced touchscreen control unit, the B-3 simplifies machine operation, allowing for quick adjustments and seamless monitoring of production parameters. Its durable construction and efficient performance make it a reliable solution for manufacturers seeking to optimize productivity without compromising on nail quality.

Feature	Double Wire Kit
Code	50-3000_dw
Weight	2,500 kg
Features	Can produce high-quality nails at a high speed with consistency. Nail heads are precisely engraved by using a powerful hammer. Low maintenance cost. Spare parts supply available at a reasonable price range. Sound insulation cover can minimize noise. Touch screen computer control unit.
Nail Diameter Range	2.0 - 2.51 mm (0.078 - 0.099 inch)
Nail Length Range	13 - 75 mm (1/2 – 3 inch)
Speed	800 nails/min.
Tensile Strength	700 - 750 N/sqmm
Main Motor	5.5 kW (7.4 HP)
Electric Power	6 kW max, 3P, 370 - 400 V, 50/60 Hz
Availability	PreOrder
Air Consumption	300 liters/min.
Air Supply	6 bar (87 psi), one 1/2 inch hose
Space Required	2 200 x 1 200 x 1 200 mm / 7' 2,6" x 3' 11,2" x 3' 11.2"

Feature

Double Wire Kit

Code

50-3000_dw

Weight

2,500 kg

Features

Can produce high-quality nails at a high speed with consistency.

Nail heads are precisely engraved by using a powerful hammer.

Low maintenance cost.

Spare parts supply available at a reasonable price range.

Sound insulation cover can minimize noise.

Touch screen computer control unit.

Nail Diameter Range

2.0 - 2.51 mm (0.078 - 0.099 inch)

Nail Length Range

13 - 75 mm (1/2 – 3 inch)

Speed

800 nails/min.

Tensile Strength

700 - 750 N/sqmm

Main Motor

5.5 kW (7.4 HP)

Electric Power

6 kW max, 3P, 370 - 400 V, 50/60 Hz

Availability

PreOrder

Air Consumption

300 liters/min.

Air Supply

6 bar (87 psi), one 1/2 inch hose

Space Required

2 200 x 1 200 x 1 200 mm / 7' 2,6" x 3' 11,2" x 3' 11.2"

Feature	Single Wire Kit
Code	50-3000
Weight	2,500 kg
Features	Can produce high-quality nails at a high speed with consistency. Nail heads are precisely engraved by using a powerful hammer. Low maintenance cost. Spare parts supply available at a reasonable price range. Sound insulation cover can minimize noise. Touch screen computer control unit.
Nail Diameter Range	2.0 - 3.43 mm (0.078 - 0.135 inch)
Nail Length Range	13 - 83 mm (1/2 – 3 1/4 inch)
Speed	500 nails/min.
Tensile Strength	700 - 900 N/sqmm
Main Motor	5.5 kW (7.4 HP)
Electric Power	6 kW max, 3P, 370 - 400 V, 50/60 Hz
Availability	PreOrder
Air Consumption	300 liters/min.
Air Supply	6 bar (87 psi), one 1/2 inch hose
Space Required	2 200 x 1 200 x 1 200 mm / 7' 2,6" x 3' 11,2" x 3' 11.2"
