Nail Making Machine B-4
B-4 Nail Making Machine – Precision and Speed for High-Volume Nail Production
The B-4 Nail Making Machine is built for manufacturers who demand speed, accuracy, and efficiency in nail production. With a powerful and durable design, this machine is capable of producing high-quality nails at an impressive rate, ensuring a reliable and consistent output for large-scale operations. Its advanced engineering minimizes wear and tear, extending operational lifespan while keeping maintenance costs low.

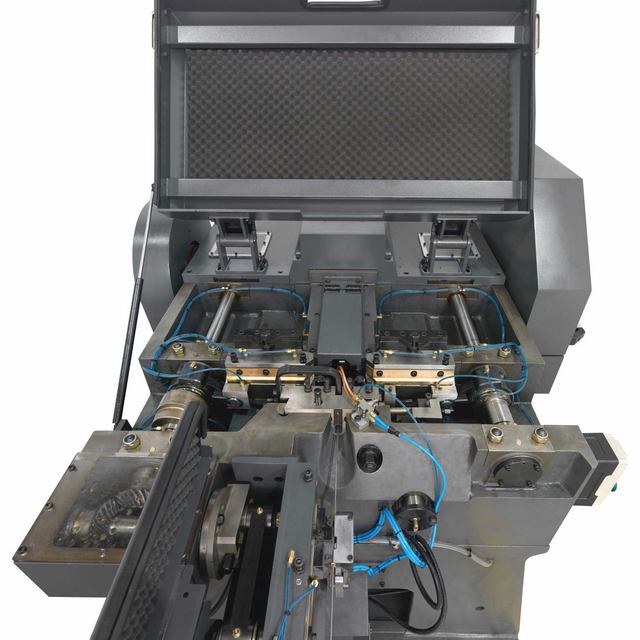

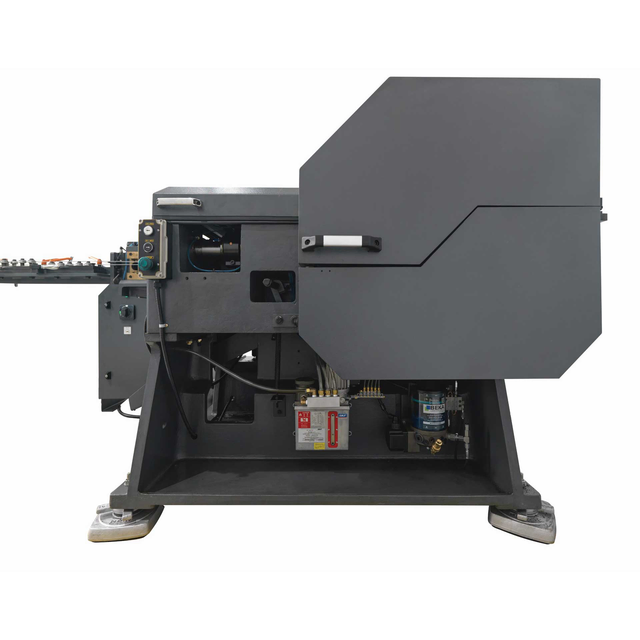

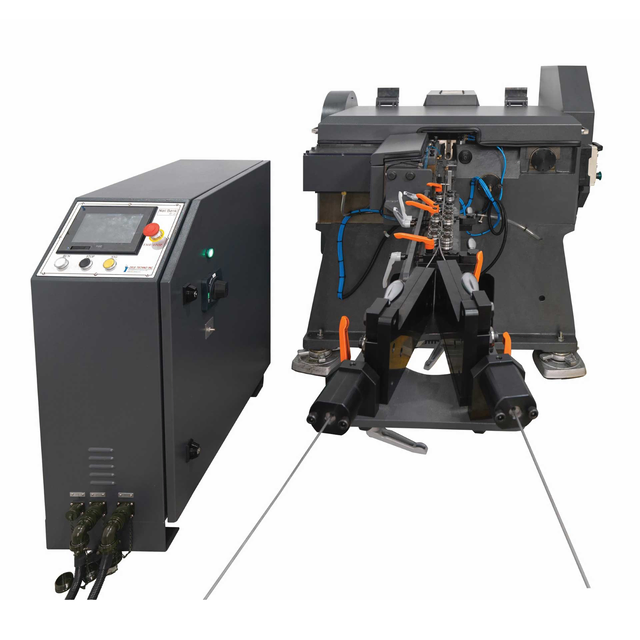

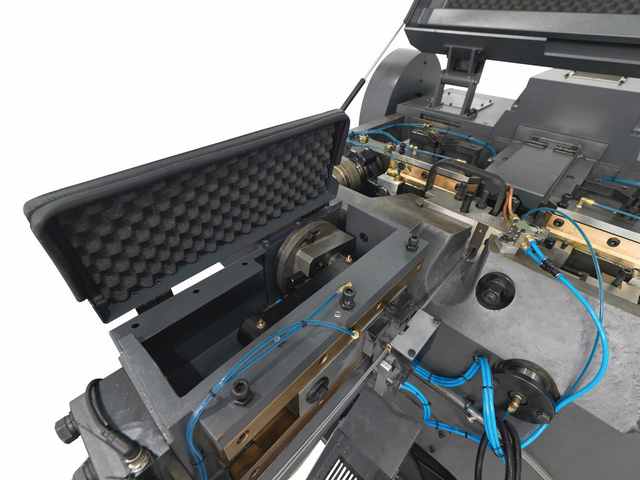

Featuring a robust hammering system for precise nail head formation and an integrated sound insulation cover, the B-4 significantly reduces noise levels, improving the working environment. Additionally, the intuitive touchscreen control unit simplifies adjustments and provides real-time monitoring of production parameters, allowing for seamless operation and enhanced productivity.
The B-4 is an excellent choice for manufacturers looking to optimize efficiency without sacrificing nail quality. Its durable components, user-friendly design, and high-speed capabilities make it a standout solution for industrial nail production.
| Feature | Double Wire Kit |
|---|---|
| Code | 50-4000_dw |
| Weight | 3,000 kg |
| Features | Can produce high-quality nails at a high speed with consistency. Nail heads are precisely engraved by using a powerful hammer. Low maintenance cost. Spare parts supply available at a reasonable price range. Sound insulation cover can minimize noise. Touch screen computer control unit. |
| Nail Diameter Range | 2.0 - 3.05 mm (0.078 - 0.120 inch) |
| Nail Length Range | 13 - 95 mm (1/2 - 3 3/4 inch) |
| Speed | 800 nails/min |
| Tensile Strength | 700 - 750 N/sqmm |
| Main Motor | 7.5 kW (10 HP) |
| Electric Power | 8 kW max, 3P, 370 - 400 V, 50/60 Hz |
| Air Consumption | 300 liters/min. |
| Air Supply | 6 bar (87 psi), one 1/2 inch hose |
| Feature | Single Wire Kit |
|---|---|
| Code | 50-4000 |
| Weight | 3,000 kg |
| Features | Can produce high-quality nails at a high speed with consistency. Nail heads are precisely engraved by using a powerful hammer. Low maintenance cost. Spare parts supply available at a reasonable price range. Sound insulation cover can minimize noise. Touch screen computer control unit. |
| Nail Diameter Range | 2.0 - 4.15 mm (0.078 - 0.163 inch) |
| Nail Length Range | 13 - 108 mm (1/2 - 4 1/4 inch) |
| Speed | 450 nails/min |
| Tensile Strength | 700 - 900 N/sqmm |
| Main Motor | 7.5 kW (10 HP) |
| Electric Power | 8 kW max, 3P, 370 - 400 V, 50/60 Hz |
| Air Consumption | 300 liters/min. |
| Air Supply | 6 bar (87 psi), one 1/2 inch hose |
