Nail Making Machine B-5

B-5 Nail Making Machine – Precision and Efficiency for Consistent Nail Production

The B-5 Nail Making Machine is an advanced solution for manufacturers who prioritize high-precision and efficient nail production. Designed for industrial-scale operations, this machine ensures a smooth and stable process, producing consistently high-quality nails while maintaining optimal energy efficiency and low operational costs.

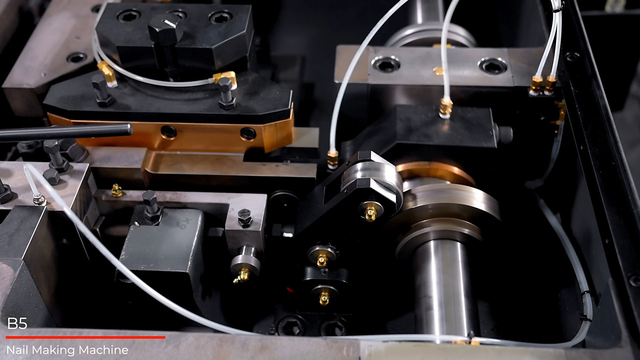

Its innovative hammering system ensures precise nail head formation, while the machine’s robust construction reduces vibration and enhances durability. The integrated noise reduction system makes the production environment more comfortable for operators, while the user-friendly touchscreen interface allows for precise adjustments and real-time monitoring of performance.

With its ability to handle various nail sizes and materials, the B-5 is an excellent choice for manufacturers looking for a reliable, high-speed, and low-maintenance solution. This machine is engineered to enhance productivity while ensuring superior nail quality with every cycle.

Feature	Double Wire Kit
Code	65-0000_dw
Weight	5,100 kg
Features	Can produce high-quality nails at a high speed with consistency. Nail heads are precisely engraved by using a powerful hammer. Low maintenance cost. Spare parts supply available at a reasonable price range. Sound insulation cover can minimize noise. Touch screen computer control unit.
Nail Diameter Range	2.84 - 5.28 mm (0.112 - 0.208 inch)
Nail Length Range	45 - 101 mm (1 3/4 - 4 inch)
Speed	250 nails/min.
Main Motor	11 kW (15 HP)
Electric Power	13 kW max, 3P, 370 - 400 V, 50/60 Hz
Air Consumption	300 liters/min.
Air Supply	6 bar (87 psi), one 1/2 inch hose
Space Required	3 200 x 2 000 x 1 300 mm / 10' 6" x 6' 6,7" x 4' 3.2"

Feature

Double Wire Kit

Code

65-0000_dw

Weight

5,100 kg

Features

Can produce high-quality nails at a high speed with consistency.

Nail heads are precisely engraved by using a powerful hammer.

Low maintenance cost.

Spare parts supply available at a reasonable price range.

Sound insulation cover can minimize noise.

Touch screen computer control unit.

Nail Diameter Range

2.84 - 5.28 mm (0.112 - 0.208 inch)

Nail Length Range

45 - 101 mm (1 3/4 - 4 inch)

Speed

250 nails/min.

Main Motor

11 kW (15 HP)

Electric Power

13 kW max, 3P, 370 - 400 V, 50/60 Hz

Air Consumption

300 liters/min.

Air Supply

6 bar (87 psi), one 1/2 inch hose

Space Required

3 200 x 2 000 x 1 300 mm / 10' 6" x 6' 6,7" x 4' 3.2"

Feature	Single Wire Kit
Code	65-0000
Weight	5,100 kg
Features	Can produce high-quality nails at a high speed with consistency. Nail heads are precisely engraved by using a powerful hammer. Low maintenance cost. Spare parts supply available at a reasonable price range. Sound insulation cover can minimize noise. Touch screen computer control unit.
Nail Diameter Range	2.2 - 6.0 mm (0.087 - 0.236 inch)
Nail Length Range	25 - 160 mm (1 - 6 1/4 inch)
Speed	350 nails/min.
Main Motor	11 kW (15 HP)
Electric Power	13 kW max, 3P, 370 - 400 V, 50/60 Hz
Air Consumption	300 liters/min.
Air Supply	6 bar (87 psi), one 1/2 inch hose
Space Required	3 200 x 2 000 x 1 300 mm / 10' 6" x 6' 6,7" x 4' 3.2"
