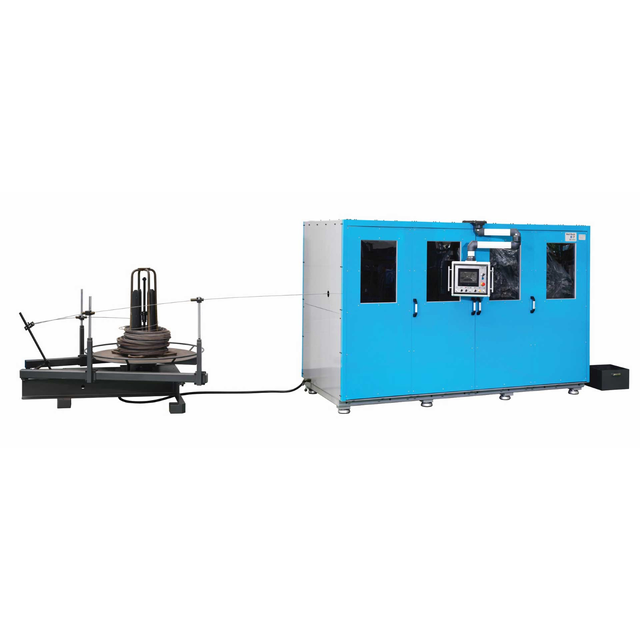

B-7 Nail Making Machine – High-Capacity Production for Industrial Nail Manufacturing

The B-7 Nail Making Machine is designed to meet the demands of heavy-duty industrial nail production. Its robust construction and powerful mechanics allow for precise manufacturing of various nail sizes, ensuring high durability and efficiency throughout the process. This machine is optimized for large-scale production while maintaining energy efficiency and operational stability.

Equipped with an advanced hammering system, the B-7 guarantees uniform nail head formation and a consistent finish. Its high-strength components ensure extended machine life, while the noise-reduction system creates a quieter working environment for operators. The integration of a touchscreen control unit simplifies adjustments, allowing real-time monitoring of machine performance.

Ideal for manufacturers who require a high-capacity, low-maintenance solution, the B-7 is built to deliver exceptional production rates while maintaining strict quality standards. Whether producing standard, long, or specialty nails, this machine ensures precision and efficiency at every stage.

Feature B-7
Code 50-7000
Weight 8,000 kg
Nail Diameter Range 3.8 - 9.0 mm (0.150 - 0.355 inch)
Nail Length Range 75 - 600 mm (3 - 24 inch)
Speed Up to 250 nails/min.
Main Motor 11 kW (15 HP)
Electric Power 22 kW max, 3P, 380 - 400 V, 50/60 Hz
Air Consumption 200 liters/min.
Air Supply 6 bar (87 psi), one 1/2 inch hose
Space Required 4 050 x 2 700 x 2 350 mm / 13' 3,4" x 8' 10,3" x 7' 8.5"
