Thread Roller RT-20C

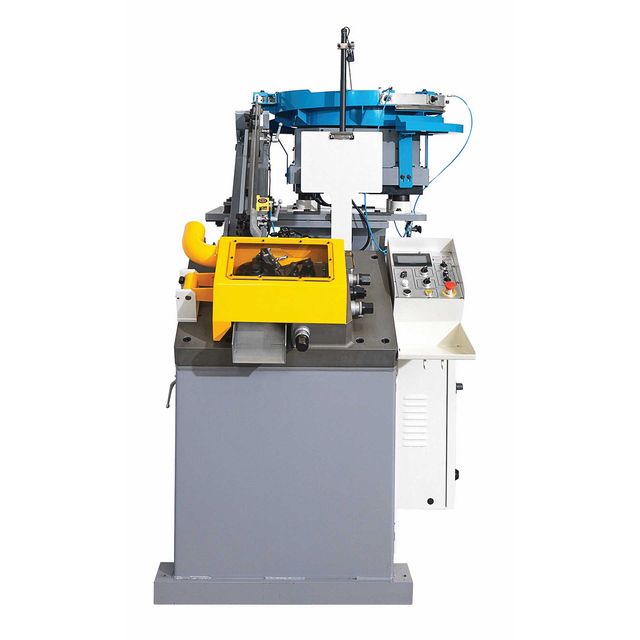

RT-20C Thread Roller – Precision and Speed for Nail Threading

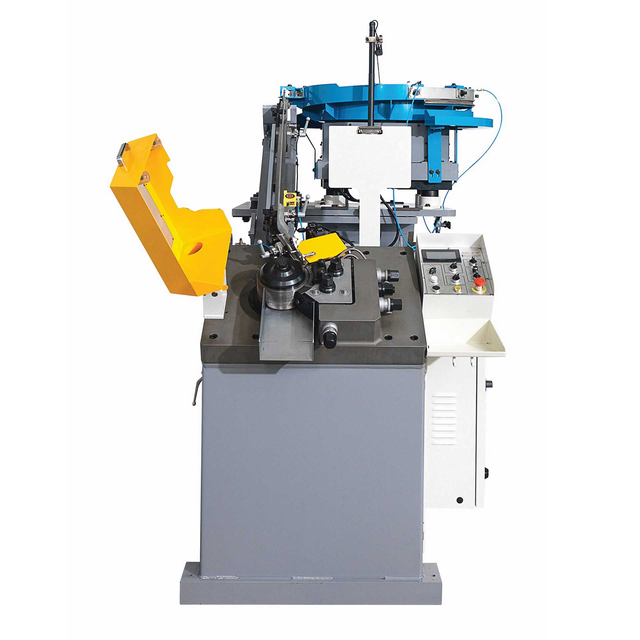

The RT-20C Thread Roller is a high-performance machine designed for the fast and accurate threading of industrial nails. Ideal for manufacturing spiral shank and ring shank nails, this model ensures consistent thread quality, enhancing nail grip and performance in various applications.

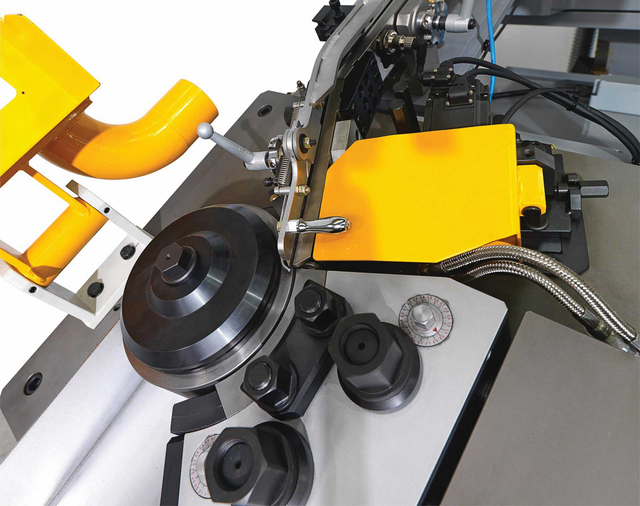

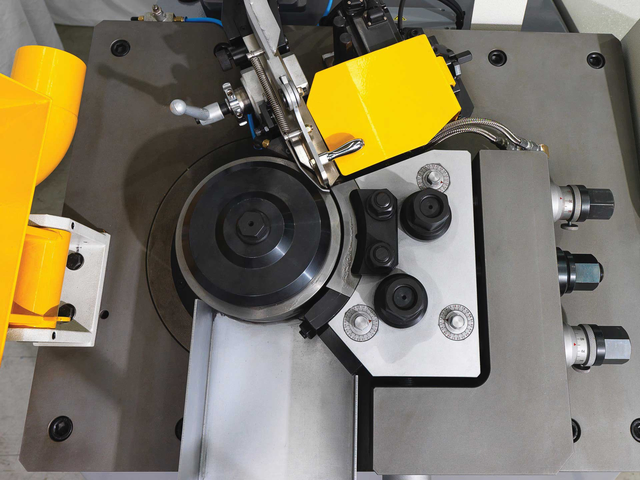

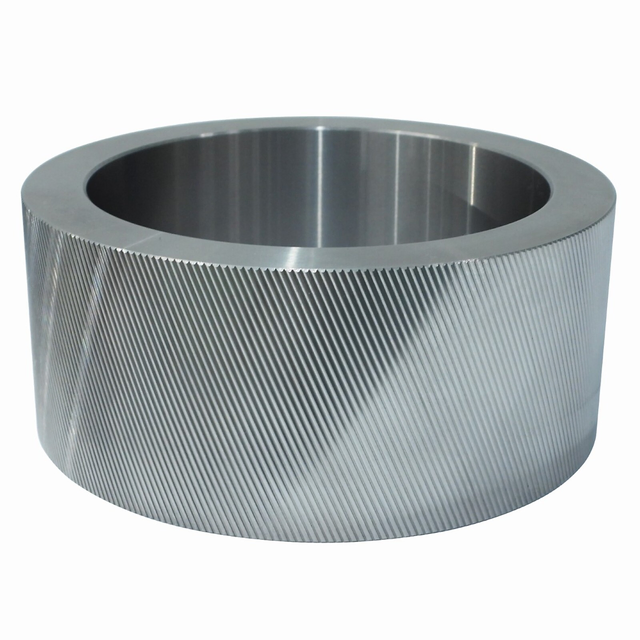

With a production speed of up to 2,500 nails per minute, the RT-20C is engineered for efficiency and reliability in large-scale nail manufacturing. It features a precise planetary thread rolling system, ensuring uniform threading across all nails produced.
The machine is equipped with an advanced vibratory feeding system that guarantees smooth and continuous nail alignment, minimizing operational disruptions. Additionally, the integrated cooling system prevents overheating, extending tool life and maintaining consistent performance over prolonged production runs.

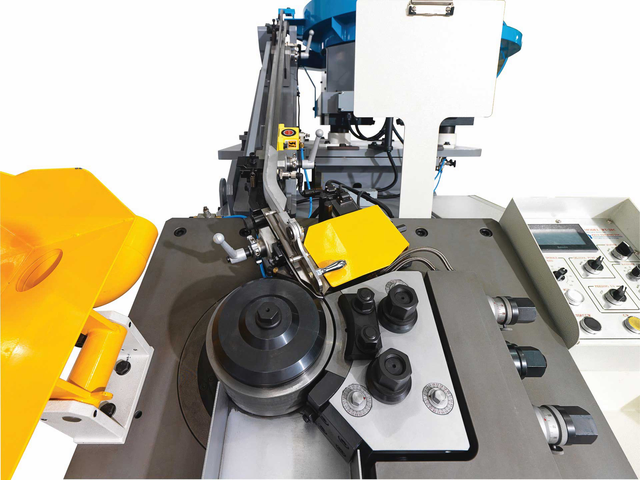

The RT-20C includes a user-friendly control panel that allows operators to make precise adjustments for different nail sizes and threading patterns. Its robust construction and optimized design make it a valuable investment for manufacturers looking to enhance their nail threading efficiency and product quality.
| Feature | RT-20C |
|---|---|
| Code | 41-0000 |
| Weight | 2,000 kg |

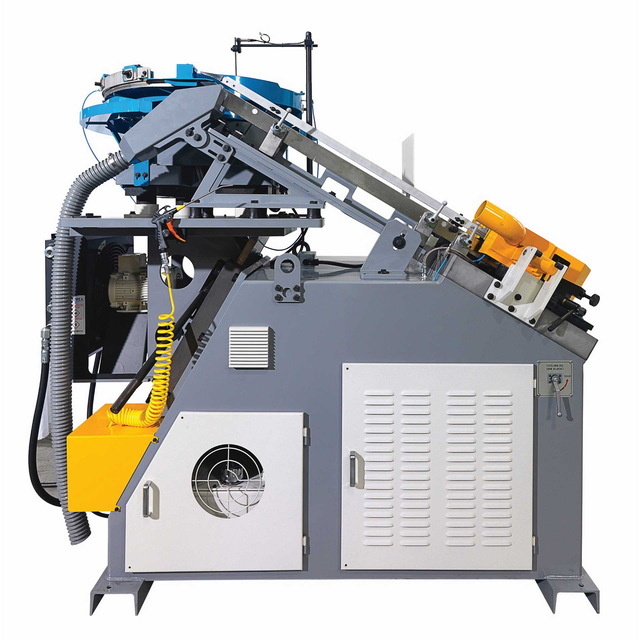

| Features | Neo PWM vibrating systems. Straight steep down rail: 1250mm length, 30 degrees aligned. High speed nail feeding system, servo motor by Auger. Up/down setup for effortless adjustment of the thread height. Fine tuning adjusting bolt ensures production of threads of the highest quality. Powerful 15 hp main driving motor equipped with a full feature vector drive for comprehensive functionality. Main spindle driven by a heavy-duty spiral bevel gear for enhanced durability. Cooling system for both gearbox & die block along with oil cooling radiator. |
| Machinedesc En | Designed for producing standard nails such as spiral shanks and ring shanks, the RT-20 series showcases exceptional versatility and performance. With wire diameter range of 1.2mm to 4mm and nail length between 30mm to 100mm, these thread rollers offer remarkable adaptability for various nail manufacturing needs. The high-speed capabilities of up to 2500 nails per minute ensure rapid production without compromising on quality. Powered by a robust 15 HP main motor and featuring Neo PWM vibrating system, the RT-20 series guarantees consistent, high-quality threads every time. Its user-friendly features, such as the up/down setup for effortless thread height adjustment and fine-tuning adjusting bolt, further contribute to its reliability and easy operation. |
| Nail Diameter Range | 2.1 - 3.77 mm (0.083 - 0.148 inch) |
| Nail Length Range | 30 - 100 mm (1.181 - 4 inch) |
| Speed | Up to 2,500 nails/min. |
| Electric Power | 15 kW max, 3P, 210-230 V, 50/60 Hz |
| Air Consumption | 200 liters/min. |
| Air Supply | 6 bar (87 psi), one 1/2 inch hose |
| Thread Length Range | 75 mm (3 inch) |
